PostSubject: To Repair Dead,Restart,Hang V3,v400,v300,v600,v500,v180,v220 solution   Tue Aug 05, 2008 2:08 am

To Repair Dead,Restart,Hang V3,v400,v300,v600,v500,v180,v220 solution


hello
share ko lang po konti ka alaman ko about common problems nang motorola
phones since wala pa ako masyado nakita thread about this matter
Dead no power
First make sure your battery is 100% ok and charger
If you cant seem to get it to power even with a external power supply
Wont go to boot mode by pressing (hold and press +and# then power button)
No responds with charger
1.Try to boot phone by pressing (hold and press +and# then power
button) if its goes to boot mode try to flash phone if not step 2
2.Try to connect phone to smart-moto and check if phone is in flash mode already thats why it wont turn on
3.Reheat PA module or remove it and try to turn phone on without PA .
if PA is shorted phone wont turn on or no responds at all with any
power supply ( some shorted PA cannot be tested by a tester in battery
terminal so I recommend that you take PA out , base on my experience )
Additional info
Phone turns on then goes off rite away even with a charger
Phone only turn on with a charger plug in
Phone chargers but drains rite away
1.Its 100% PA problem to
Signal problem
Signal is good but cant make calls
Call Failed and cant received calls
No signal at all
1.Try to flex or full flash phone if you still get called failed or no signal
2.Try to reheat PA module if you still get called failed or no signal
3.Change PA module 100% PA problem , after change PA and still no signal full flash phone with monster pack or any full flash
4.After that smile your phone is working
Hang
Phone turns on after few minute phone hangs or keys not working , (check if phone hangs when signal appears) PA in fault
1 Try master clear if still hangs
2.Full factory reset if still hangs
3.Try full flash phone if still hangs
4.Reheat PA or remove and observe phone with out PA module faulty PA causes software to hang
Restart
Phone restarts by it self , phone restart when making a call or receiving calls
1 Try master clear if still restarts
2.Full factory reset if still restarts
3.Try full flash phone if still restarts
4.100% faulty PA
Here is what the PA looks like

two in one po sya hindi kagaya nang nokia naka hiwalay ang antenna switch sa PA
SKYWORKS Antenna switch + power amplifier
850/900/1800/1900MHz quad band
34pins po sya +1 for ground

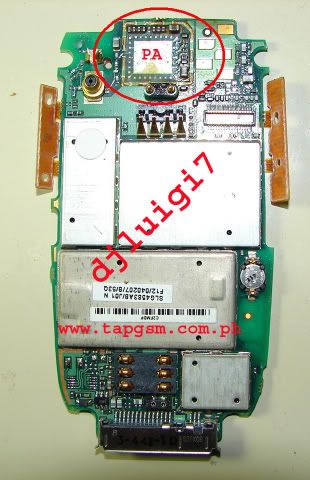

Here is the location for v300/v400/v500/v600 etc na kapareho sa image

medyo madami po kasi ako repair about dead phones ayaw mag power at
bago lang daw phone nag hahang at restart, medyo napupuna ko lang medyo
madali ata masira ang part nang PA nang motorola which causes the phone
to short out hang at dead
if you guys have any question about any problem related to motorola
phones pm lang kayo or post here and i will try as much as a can to
help you
PS: kung meron pa kayo gusto dagdag kaalaman about this matter at base sa mga experience nyo pls feel free to help out

_________________
kris_ong04@yahoo.com
Back to top Go down
View user profile http://gsmtuguegarao.forumotion.net
pinoy technology
administrator
administrator


Male
Number of posts: 394
Age: 32
Location: tuguegarao city
:profile:
Registration date: 2008-07-25

PostSubject: Re: To Repair Dead,Restart,Hang V3,v400,v300,v600,v500,v180,v220 solution   Tue Aug 05, 2008 7:24 pm

nice bro keep it up.......

_________________
address: benglen complex tuguegarao city phil.
cp nos: 09058777093
ym: qpirata09


only god knows no man is perfect
